Rickshaw for 6

Writer： admin Time：2024-06-06 15:10:21 Browse：722℃

Bocal made E rickshaw passenger for  ,the overall measurement 2750mm(L)*995mm(W)*1780mm,equipped with powerful DC Motor 1000W,max speed 30km/h ,loading capacity upto 400KGS (driver not in count) and 24 tubes controller. The rickshaw with headlights + turn signals + brake lights + reversing lights to make drive safely.

More details as bellow.
1   Model No.        W3000
2   Motor power: 72V1500W
3       Controller         36 Tube double dual moda
4       Curb Weight     235KG Without Battery
5       Loading Capacity     600KG (not included driver)
6       Overall Dimension   2950(L)*1080(W)*1710MM(H)
7       Brake System  Front Drum/Rear Drum
8       Climbing Ability        ≤15°
9       Front/Rear Tyre        4.00-12
10     Max Speed KM/H     30KM/H
11     Battery    pb-acid Maintenance-free 72V100AH*6 sets
12     Charging Time          8Hr
13     Range per Charge   120KM
14     Front Fork         φ43 Hydraulic with External Spring
15     No. of Passenger   6+
16  Lamp: headlights + turn signals + brake lights + reversing lights
17  Compartment structure removeable
18     Color         Customized
19     Container Capacity           CKD: 50-53 SETS/40HQ
Option :
Motor could updated to 4000W
Battery could updated to Lithium-ion 48V

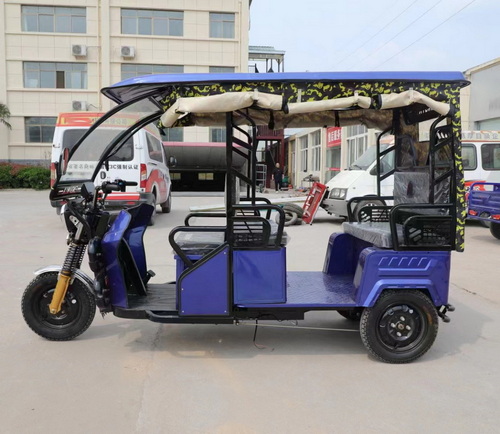

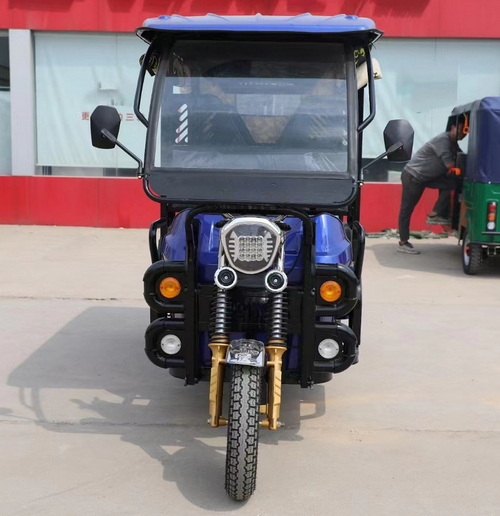

More photoss bellowing for reference
