Customer case

Multi Fuction Rickshaw for Cleaing

Writer: admin Time:2024-06-06 15:12:51 Browse:301℃

Product Description

Bocal Group invest and working on Envoirnmental Cleaning Equipments since 2016,now proudly present these Multi Function High Presure Cleaning E Rickshaw and High Presure cleaning Mini Truck,Road Sweeper and Garbage Truck for help keeping our homeland,living and working place clean,to do dustfall avoid harm from dust and to do air sterilization for Hospital and public area.
Bocal design perfectly and efficient machine at the cheapest cost.

Product Description

Product Name: Fully EV High Presure Cleaning Tricycle (Option 4 wheels mini Truck)

 The high-pressure cleaning electric tricycle or 4 wheels minit ruck is a compact street cleaning vehicle powered by batteries instead of fuel. It features high-pressure washers to blast away dirt, grime and debris from hard surfaces. Producing zero direct emissions, it's ideal for operating in urban areas and ecologically-sensitive environments.


           PRODUCTS FEATURES

  • The body is featured with non-bearing body structure, which is strong in rigidity and distortion resistant.

  • It is featured with reinforced axle and two rear tires, and the front and rear suspensions are the overall bridge style with strong carrying capacity.

  • The cleaning devices consist of the devices including front cleaning device, cylindrical single-point (two-point) cleaning device, manual spray gun device and so on.

  • When the front cleaning device is working, the high pressure water flow can form a complete cleaning plane.

  • The electronic control rotates 12° vertically and swings 18° horizontally.

  • The operation of columnar single point cleaning device is fully electric controlled, and the driver can complete the operation in the cab.

  • The full direction operations of the up, down, left and right are available.

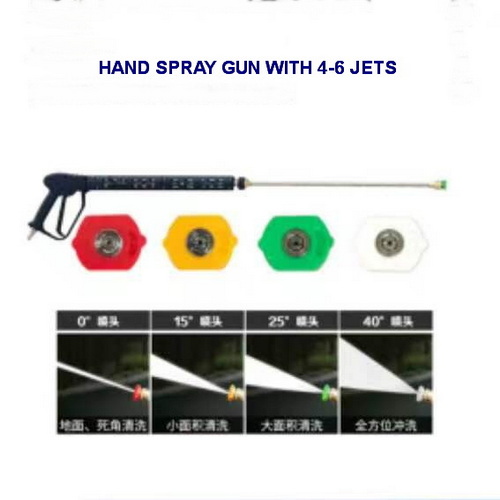

  • The rear end is equipped with manual high-pressure spray gun, and high-end12meter long roll coil supporting water cannon.

  • It is simple and convenient for operation, which both saves time and manpower.

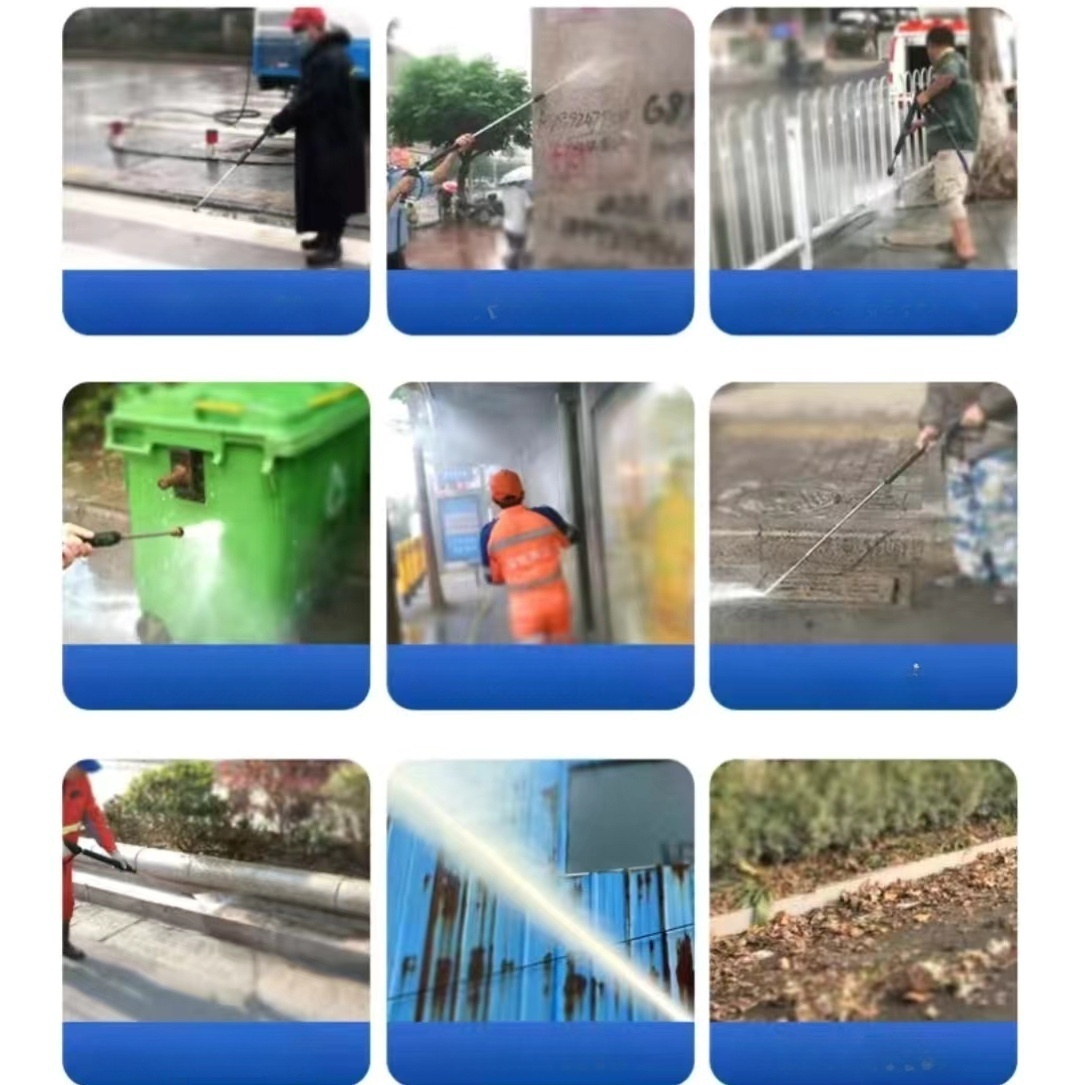

  • With the large operating range, it can be configured with a variety of specialized nozzles to clean the centralized stains and adlets along the street.



Product Parameters

ItermsSpecificationsItermsSpecificatons
Dimension (L/W/H)3050*1050*1500mmDrive Engine60V/72V 1200W
Number of Passenger1Speed (max)28km - 35km/Hr
Gross Weight (unloading)350KGSBatteryOption Pb-Acid 60V/106A or Li-Battery
Water Tank CapacityOptional 500L-1000LWater Presure (Hand Spray Gun)Option 150KG/cm-250KG/cm2
Trunk 2Optional Half Cover or Fully CoverHand Spray Gun Pipe Auto Rolling 10m-15m
WheelsOptional Tricycle and 4 wheelsEndurance 40km (unloading)
Motor (pump)Pioneer 4KWFlow (max) Adjustable 13L - 15L/minite
Water Tank MaterialOptional from Stainless Steel 1.5mm and Strong Plastic Moulding TankTrunk MaterialZinc Coated Steel Plate
Water Filter80um easy cleanGradeability15% max
Pump OperationHand on/off and Remote ControlWarranty1 year free replacement for all parts
Keep Working Hrs2Hrs -3HrsAfter sale ServiceAny Time






Certifications



Packaging & Shipping



FAQ



Q:Which kinds of batteries can we choose?
A:Our standard configuration is Lead-acid battery, it also can use lithium battery according to customer's request

Q:How to carry out after-sales service?
A:During the warranty period, all parts free of charge except for wearing parts and man-made damage. you need to provide the bad
parts and we will replace it for you immediately.

Q:What about your cleaning machine price?
A:You will get the cheapest price in the market.

Q:Can you send me the video to show how the cleaning truck work?
A:Certainly, we have made video of every kinds of cleaning truck and uploaded them by our chain address.If you need, we will send you operation
video.

Q:How long it takes for lead time?
A: For sample, 1-5 days after payment; for bulk order, 5-10 days after deposit.

Q: Is customized design acceptable ?
A:Yes, of course, we have professional engineers help design the most proper one for you.

Q: Does your company accept custom-made?
A:Yes, you may choice any parts you like,for example ,battery,pump ,trunk,color ,logo....
